4080 Aluminum Extrusion

Alugreat 4080 aluminum extrusion possesses high tensile strength when compared to other products. The high amount of weight it can carry makes it suitable for demanding structural framework applications.

• Features Easy to Manage Design
• Fast and Large Production Volume Without Harming Quality
• Offers Professional Design Enhancement and Approval
• Full Set of Installation Accessories Included

Frequently 4080 Aluminum Extrusion Questions & Answers

Alugreat is a leading 4080 aluminum extrusion manufacturer and supplier in China, delivering high-quality 40 series T-slot aluminum profiles with heavy-duty performance, stable support, and easy installation for diverse engineering and industrial applications. Our 4080 aluminum extrusion is engineered to solve various engineering challenges with its compact design and practical features.

Key Features of Alugreat 4080 Aluminum Extrusion

Stable Heavy-Duty Support

Alugreat 4080 aluminum extrusion features a thick center structure that provides enhanced and stable support, making it one of the strongest T-slot design profiles in the market. Its robust construction ensures reliable performance for heavy-duty applications.

Precise Fit & Compact Design

Beyond its heavy-duty capabilities, Alugreat 4080 aluminum extrusion offers an excellent fit and a compact form factor, equipped with helpful features to address your engineering needs efficiently.

Versatile T-Slot Design

As part of the 40 series slotted aluminum extrusions, Alugreat 4080 aluminum extrusion comes with 8.2mm-wide T-slots. This design allows the profile to be attached or mounted on multiple sides and positions, providing great flexibility for different project configurations.

Easy & Cost-Efficient Installation

Alugreat 4080 aluminum extrusion is designed for easy installation and mounting, with no welding required—this saves both time and costs for your projects. It uses M8 (8mm) screws and bolts for installation, which create a tight and rigid connection when fastened. These M8 screws and bolts are internally paired with spring fasteners to further enhance connection strength, making our 4080 aluminum extrusion a reliable addition to your projects.

Manageable Weight & Effortless Assembly

Alugreat 4080 aluminum extrusion weighs 3.5kg per meter, a reasonable weight considering its 40mm×80mm dimensions. Customers appreciate its easy-to-manage design, which allows for effortless assembly with simple steps and no need for complex tools during installation.

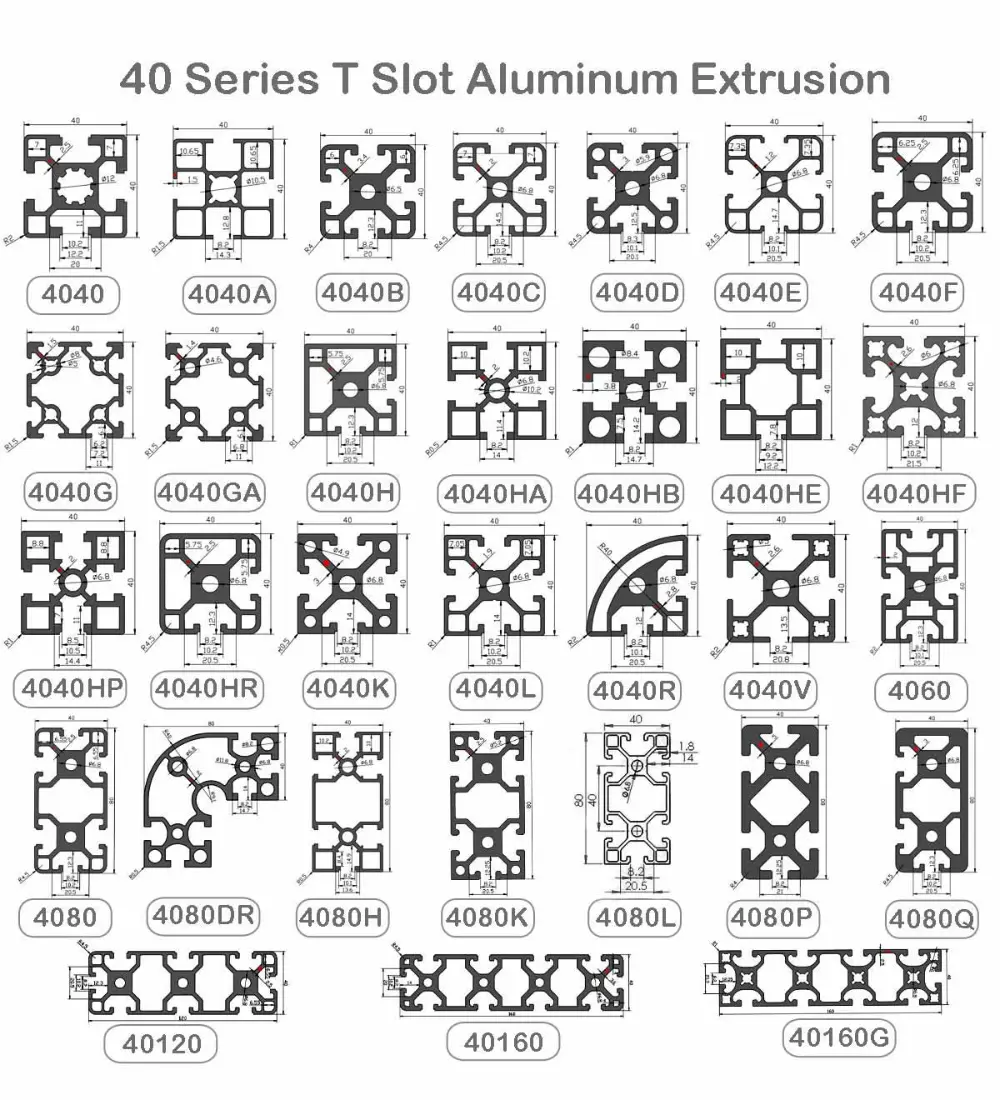

40 Series Aluminum Extrusion Specifications

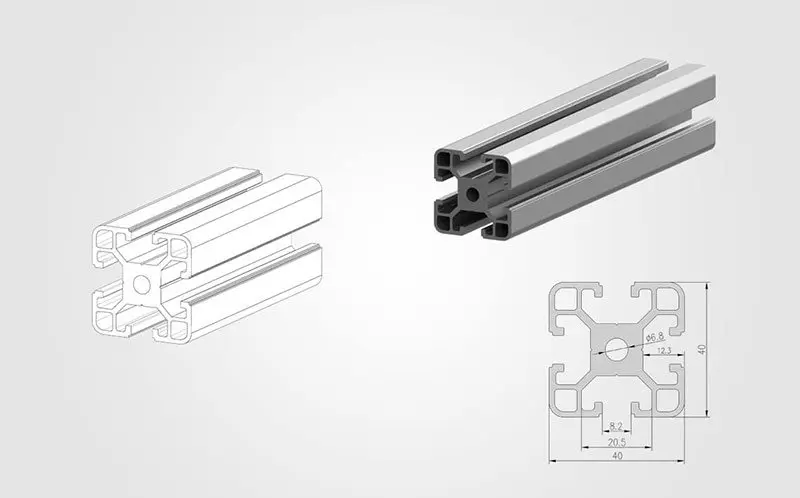

4040B Aluminum Extrusion

Specifications

• Product Code: W-8-4040B

• Slot Width: 8.2mm

• Weight: 1.95kg/m

• Standard Length: 6.02m (custom cut options available)

• Moment of Inertia: Ix: 9.7cm⁴, Iy: 9.7cm⁴

• Section Modulus: Zx: 5.1cm³, Zy: 5.1cm³

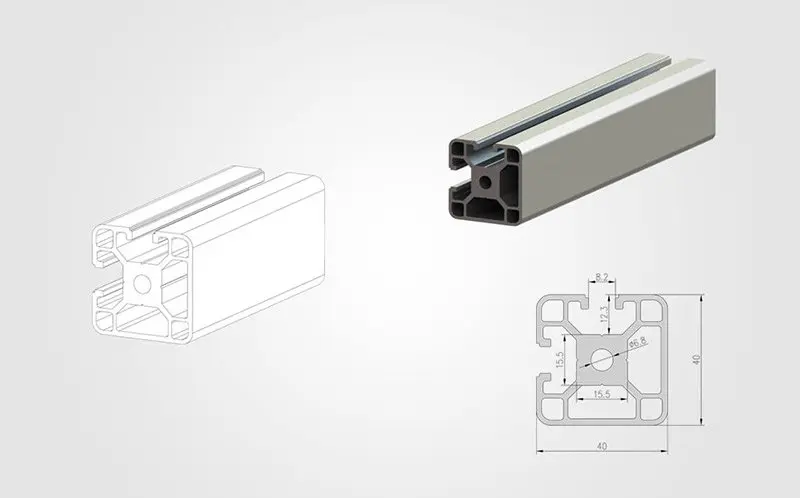

4040E Aluminum Extrusion

Specifications

• Product Code: W-8-4040E

• Slot Width: 8.2mm

• Weight: 2.1kg/m

• Standard Length: 6.02m (custom cut options available)

• Moment of Inertia: Ix: 7.3cm⁴, Iy: 7.3cm⁴

• Section Modulus: Zx: 4.25cm³, Zy: 4.25cm³

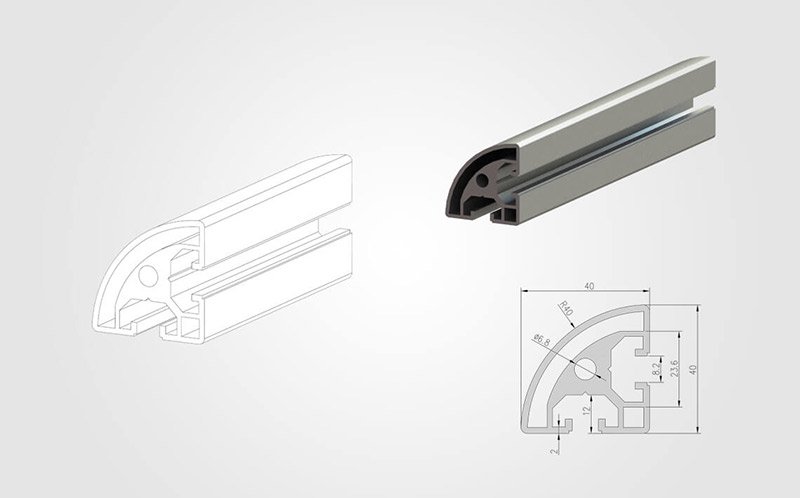

4040R Aluminum Extrusion

Specifications

• Product Code: W-8-4040R

• Slot Width: 8.2mm

• Weight: 1.75kg/m

• Standard Length: 6.02m (custom cut options available)

• Moment of Inertia: Ix: 6.15cm⁴, Iy: 6.15cm⁴

• Section Modulus: Zx: 2.84cm³, Zy: 2.84cm³

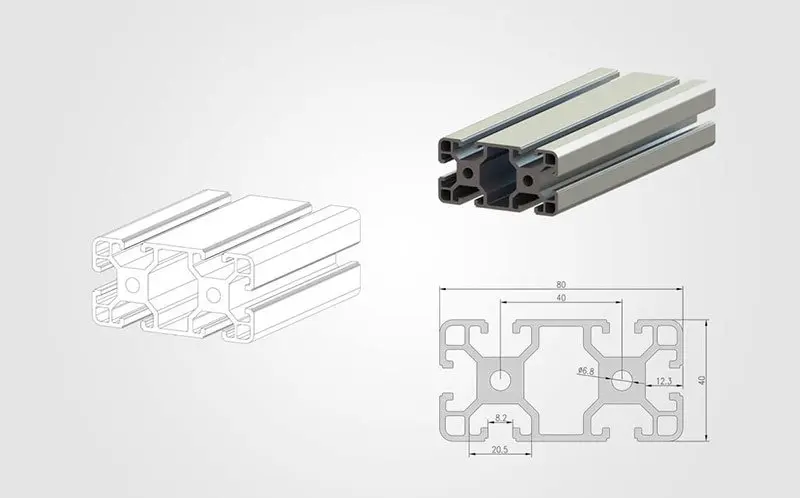

4080 Aluminum Extrusion

Specifications

• Product Code: W-8-4080

• Slot Width: 8.2mm

• Weight: 3.5kg/m

• Standard Length: 6.02m (custom cut options available)

• Moment of Inertia: Ix: 74.8cm⁴, Iy: 21.6cm⁴

• Section Modulus: Zx: 17.40cm³, Zy: 8.70cm³

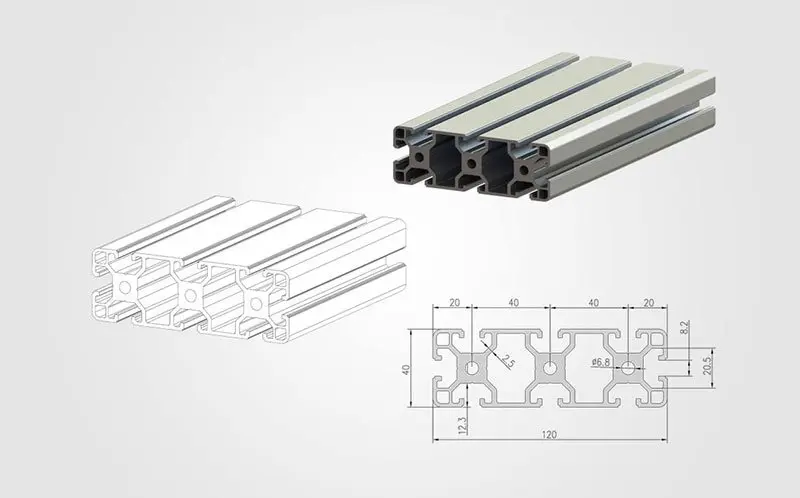

40120 Aluminum Extrusion

Specifications

• Product Code: W-8-40120

• Slot Width: 8.2mm

• Weight: 5kg/m

• Standard Length: 6.02m (custom cut options available)

• Moment of Inertia: Ix: 126.3cm⁴, Iy: 25.6cm⁴

• Section Modulus: Zx: 32.4cm³, Zy: 10.8cm³

Our Commitment to Quality & Efficiency

Alugreat has earned the trust and loyalty of customers worldwide by prioritizing their needs. We are capable of manufacturing large-volume orders with our 35 extrusion lines, ensuring fast production without compromising product quality. Whether you need standard or custom 4080 aluminum extrusion solutions, we are dedicated to delivering reliable products that meet your project requirements.
