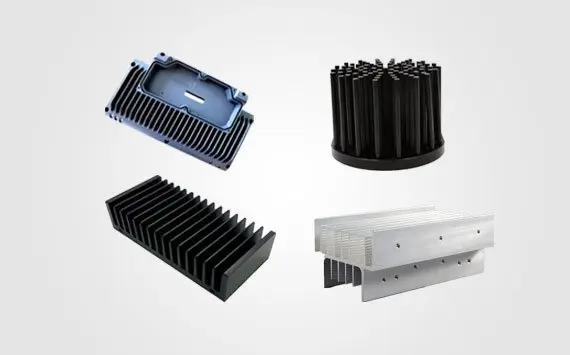

Custom Heat Sink

• Fast lead time within 15-20 days
• Support CNC machining with tight tolerance
• Custom Heatsink with high heat performance
• Engineers help your design to final manufacturing

Frequently Asked Questions

Alugreat is a professional custom heat sink manufacturer and supplier, offering tailored thermal management solutions with custom sizes, shapes, and anodized finishes to meet the unique cooling needs of electronics, machinery, LED lighting, computers, cell phones, DVD players, refrigerators, and more. Our expert engineering team delivers high-performance custom heat sinks designed to optimize airflow, power dissipation, and mechanical compatibility for diverse applications.

Custom Heat Sink Features & Customization Options

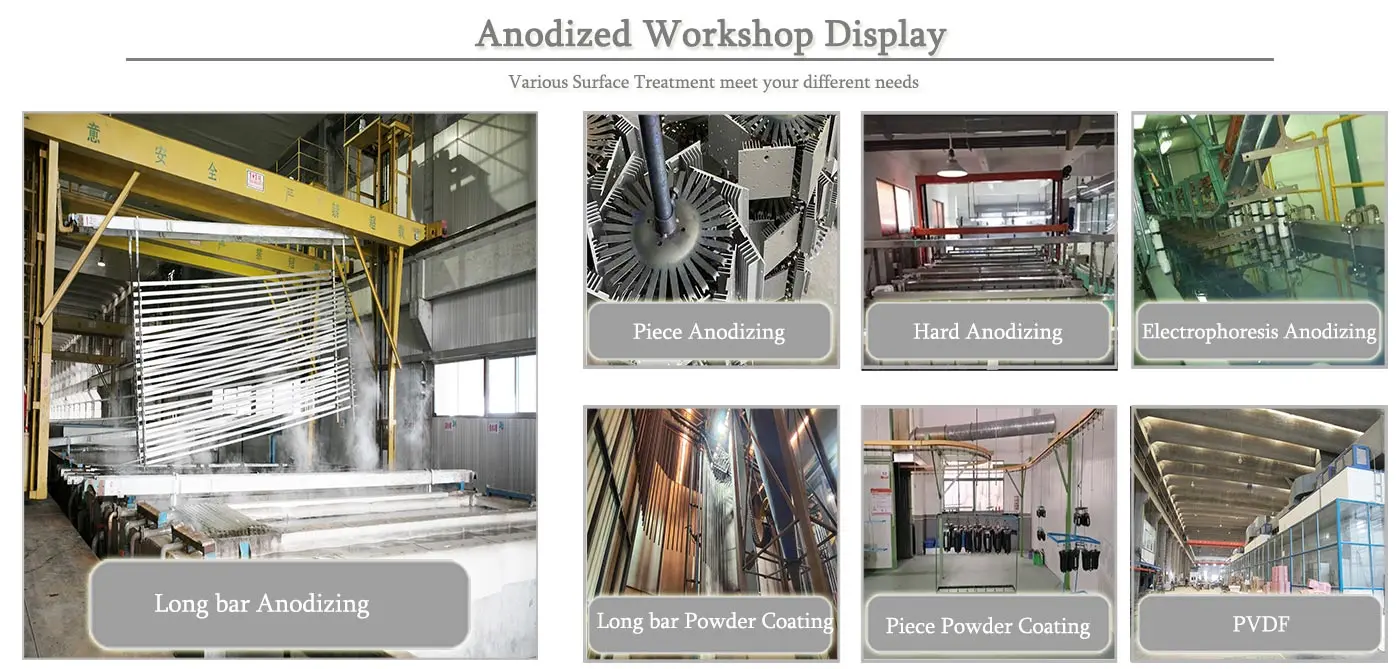

Alugreat custom heat sinks are available in a variety of custom configurations, with optional anodized finishes for enhanced surface protection and durability. Our tailored aluminum heat sinks are engineered to integrate seamlessly with your product designs, ensuring optimal thermal performance and fit for your specific application requirements.

Industry-Leading Custom Heat Sink Solutions

As a leading custom heat sink manufacturer, Alugreat specializes in delivering custom thermal solutions for applications with specific airflow, power dissipation, and mechanical/size limitations. Our custom heat sinks are manufactured using advanced techniques including extrusion, die casting, cold forging, skiving, and bonding to achieve superior surface performance and heat dissipation efficiency.

Whether you need custom heat sinks for personal projects or large-scale business applications, Alugreat is committed to providing high-quality products and efficient services to meet your thermal management needs.

Customization & Design Optimization

At Alugreat, we offer both fully custom heat sink designs and modified standard heat sinks to match your application requirements. Designing a custom heat sink with Alugreat helps reduce product costs, minimize manufacturing complexity, and ensure compatibility with nearby components without compromising signal routing.

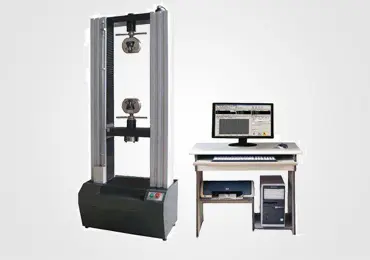

Expert Engineering Support & Quality Assurance

Our experienced engineering team provides professional guidance to help you select the right heat sink type, specifications, and design features for your application. Alugreat strictly adheres to the ISO9001 quality management system to ensure consistent product quality and reliability. With years of industry experience, we deliver innovative thermal solutions that meet the evolving needs of our global clients.

About Alugreat Custom Heat Sinks

Alugreat is a China-based professional aluminum heat sink manufacturer, renowned for our industry expertise and innovative thermal management technologies. We strive to be a trusted partner for our customers, delivering added value through customized heat sink solutions that address high-power cooling challenges. Experience the benefits of partnering with Alugreat for your custom heat sink needs and take your business to new heights. Contact us today for more detailed information and personalized support.

Custom Heat Sink: The Ultimate FAQ Guide

Choosing the right custom heat sink for your specialized application can be challenging. This comprehensive guide answers all your questions about custom heat sinks to help you make informed purchasing decisions.

What Is A Custom Heat Sink?

A custom heat sink is a specialized thermal management device designed to absorb and dissipate excess heat from mechanical and electronic components. It is used to cool overheating parts of devices by transferring heat away from the heat source and dissipating it into the surrounding environment.

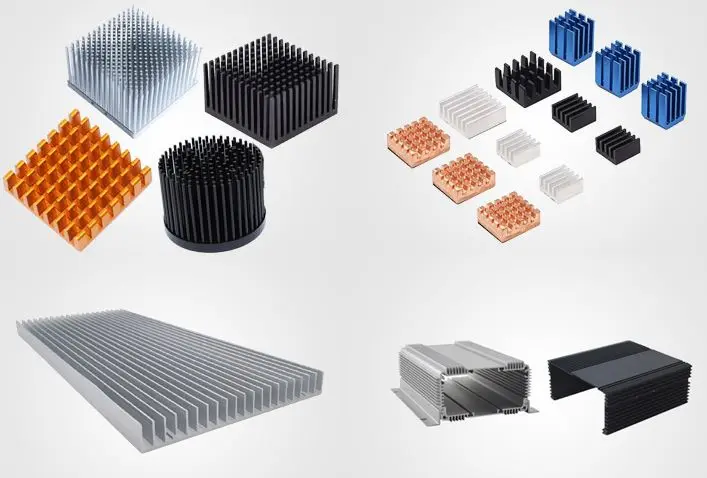

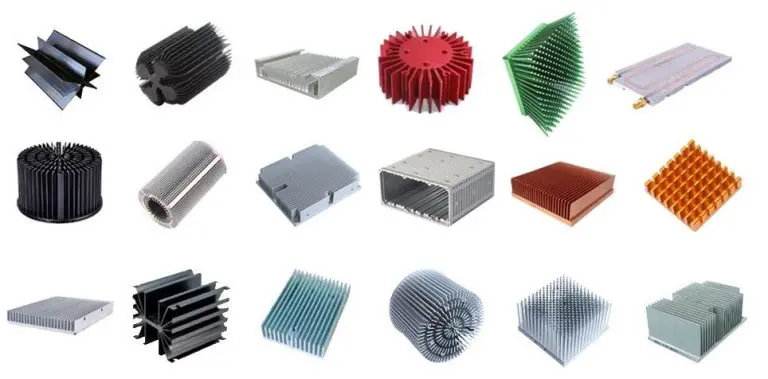

What Are The Different Types Of Custom Heat Sinks You Supply?

You can choose from a range of custom heat sink types based on your application specifications:

• Machined Custom Heat Sinks

• Extruded Custom Heat Sinks

• Casted Custom Heat Sinks

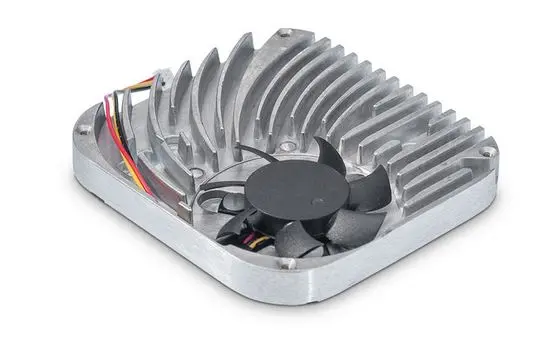

• Die-Cast Custom Heat Sinks

• Forged Custom Heat Sinks

• Skived Custom Heat Sinks

• Stamped Fin Custom Heat Sinks

Which Factors Should You Consider When Designing Custom Heat Sinks?

When designing custom heat sinks, consider the following critical factors to ensure optimal performance:

• Space Availability: Evaluate the available installation space to determine the appropriate heat sink dimensions.

• Power Source: Consider the wattage and size of the heat-generating device to match the heat sink's dissipation capacity.

• Airflow Speed & Direction: Assess air speed in LFM and airflow direction to optimize heat dissipation efficiency.

• Maximum Operating Temperature: Determine the maximum case or junction temperature to specify the required heat dissipation rate.

• Ambient Temperature: Account for the local ambient temperature to calculate the temperature difference and heat dissipation potential.

• Attachment Method: Choose the appropriate mounting method, with soldering being the most preferred option for secure installation.

• Thermal Interface Properties: Evaluate thermal impedance and conductivity to ensure efficient heat transfer between the heat sink and component.

• Estimated Usage & Budget: Consider the intended service life and budget constraints to select the most cost-effective solution.

What Is The Significance Of Customizing A Heat Sink?

Customizing a heat sink allows you to create a thermal solution tailored to your exact specifications, ensuring the perfect fit and performance for your application. You have complete control over the heat sink's design, materials, and features to address your unique cooling challenges.

What Is The Difference Between Machined Heat Sinks And Extruded Custom Heat Sinks?

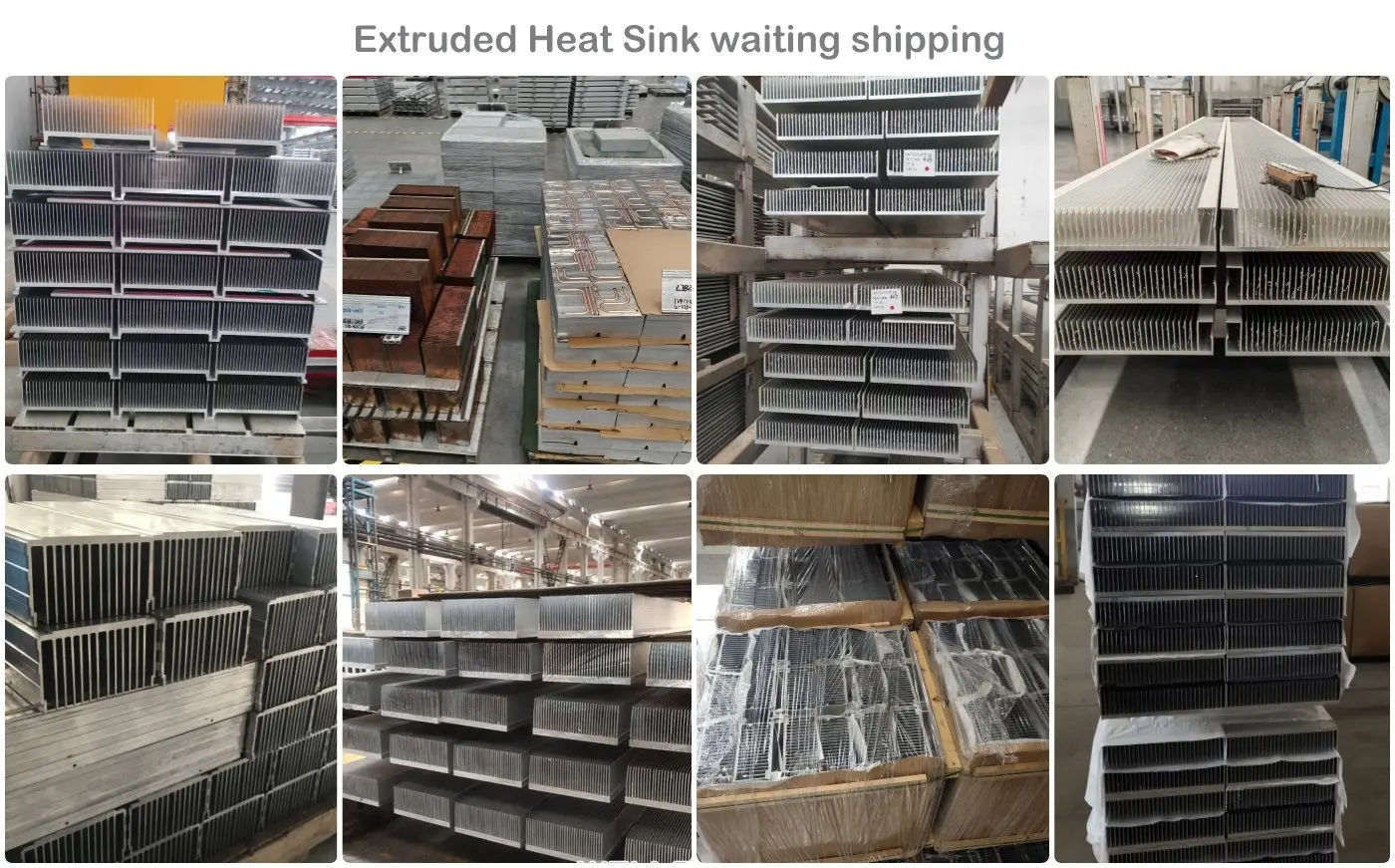

• Extruded Custom Heat Sinks: Manufactured using aluminum extrusion, these heat sinks are cost-effective and ideal for high-volume production.

• Machined Custom Heat Sinks: Produced through precision machining, these heat sinks offer high accuracy, complex features, and are suitable for low to medium volume production.

How Does The Casted Custom Heat Sink Compare To Forged Custom Heat Sink?

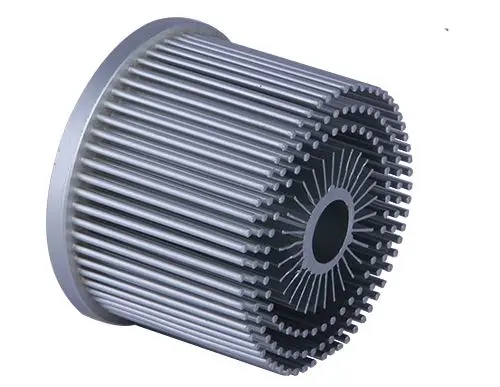

• Forged Custom Heat Sinks: These thin-sectioned heat sinks are manufactured using high-pressure forging, offering a range of shapes and designs for specialized applications.

•

• Casted Custom Heat Sinks: Produced through metal casting, these heat sinks are ideal for prototypes and medium to short volume production runs.

•

How Do Skived Custom Heat Sinks And Stamped Fin Custom Heat Sinks Compare?

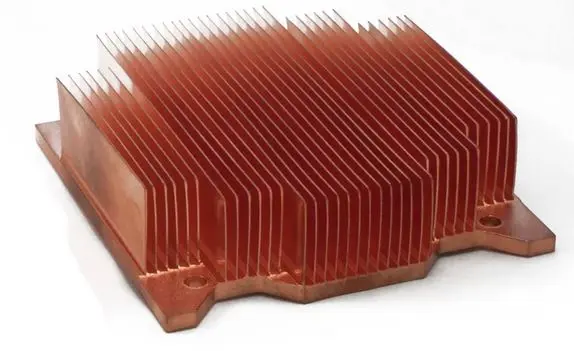

• Skived Custom Heat Sinks: Manufactured using specialized cutting tools and controlled shaving techniques, these heat sinks feature thin, uniformly distributed fins for high-performance heat dissipation.

• Stamped Fin Custom Heat Sinks: Produced by stamping aluminum or copper into specific configurations, these heat sinks are cost-effective for high-volume production and offer a range of thicknesses and geometries.

•

Which Materials Do You Use To Manufacture Custom Heat Sinks?

We primarily use aluminum alloys for custom heat sink manufacturing, with the following common options:

• Aluminum Alloy 1050: Offers high thermal conductivity (229 W/(mK)) but has lower mechanical strength.

• Aluminum Alloy 6060: Ideal for low-stress applications with balanced thermal and mechanical performance.

• Aluminum Alloy 6061: Provides thermal conductivity of 166 W/(mK) with excellent mechanical strength.

• Aluminum Alloy 6063: Delivers thermal conductivity of 201 W/(mK) and is highly suitable for extruded heat sinks.

Copper is also available for applications requiring superior thermal conductivity, though it is heavier and more costly than aluminum.

What Is The Difference Between An Active Heat Sink And Passive Heat Sink?

• Passive Heat Sinks: These heat sinks dissipate heat without additional assistance, relying solely on natural conduction and convection. They are typically larger and suitable for low to medium heat applications.

• Active Heat Sinks: These heat sinks are paired with powered cooling devices such as fans or water pumps to enhance heat dissipation capacity. They are ideal for high-heat applications requiring accelerated cooling.

How Do Copper Heat Sinks Compare To Aluminum Heat Sinks?

• Copper Heat Sinks: Offer superior thermal conductivity for efficient heat transfer, but are heavier and more expensive than aluminum alternatives.

• Aluminum Heat Sinks: Provide excellent thermal conductivity at a lower cost and lighter weight, making them the most popular choice for most applications. Aluminum heat sinks often feature multiple thin fins to maximize heat transfer efficiency.

What Is The Difference Between Finned And Pinned Heat Sinks?

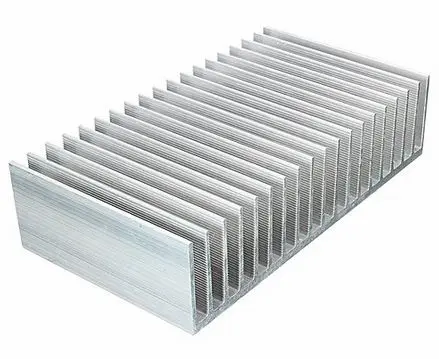

• Finned Custom Heat Sinks: These heat sinks feature thin metal plates (fins) that increase surface area for enhanced heat dissipation. They can be manufactured through forging, milling, CNC machining, or die-casting.

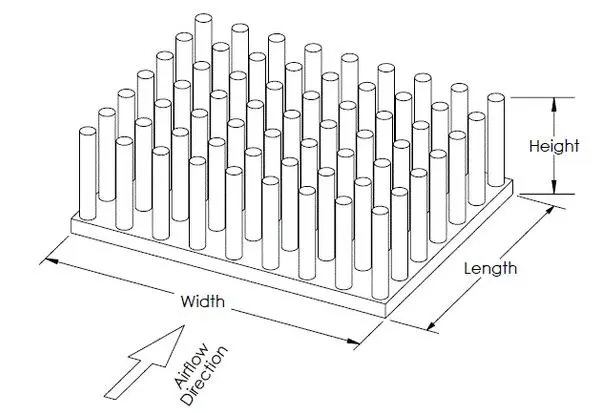

• Pinned Custom Heat Sinks: Also known as pin fin heat sinks, these feature clusters of rods or pins (square, elliptical, or cylindrical) extending from the core to maximize surface area and heat dissipation.

•

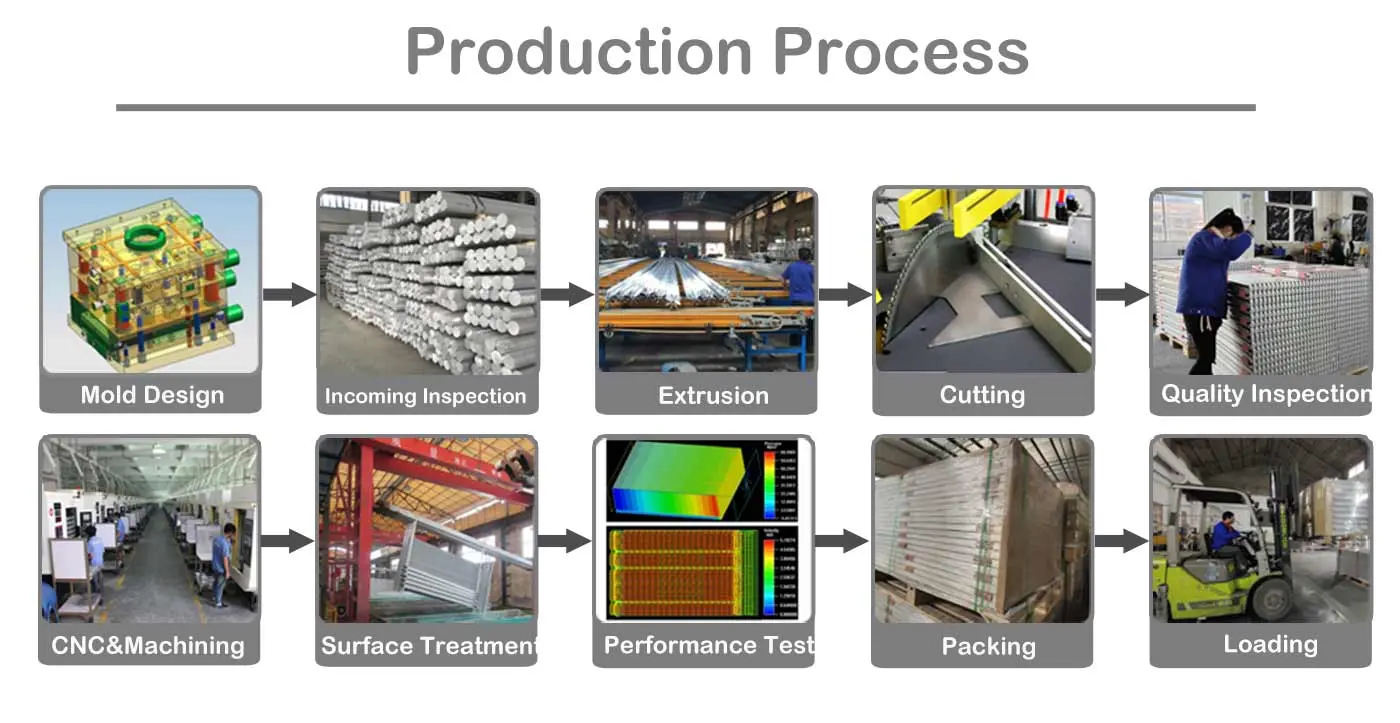

What Are The Common Options For Manufacturing Custom Heat Sinks?

We offer a variety of manufacturing methods for custom heat sinks:

• Extrusion: The most common method, involving forcing metal into the desired shape, ideal for high-volume production.

• Forging: Uses molds to shape the heat sink, cost-effective for bulk production.

• Bonding: Attaches fins individually to the base, ideal for space-limited or custom applications.

• Stamping: A low-cost method suitable for simple heat sink designs, though less efficient for high-heat applications.

• CNC Machining: Offers precision cutting from solid metal blocks, ideal for complex designs but with higher material waste and cost.

• Skived (Zipper Fin) Manufacturing: Uses specialized machines to cut and form fins from solid metal blocks, delivering high-performance heat sinks with optimized fin structures.

What Are Some Of The Uses Of Custom Heat Sinks?

Custom heat sinks are used in a wide range of applications, including:

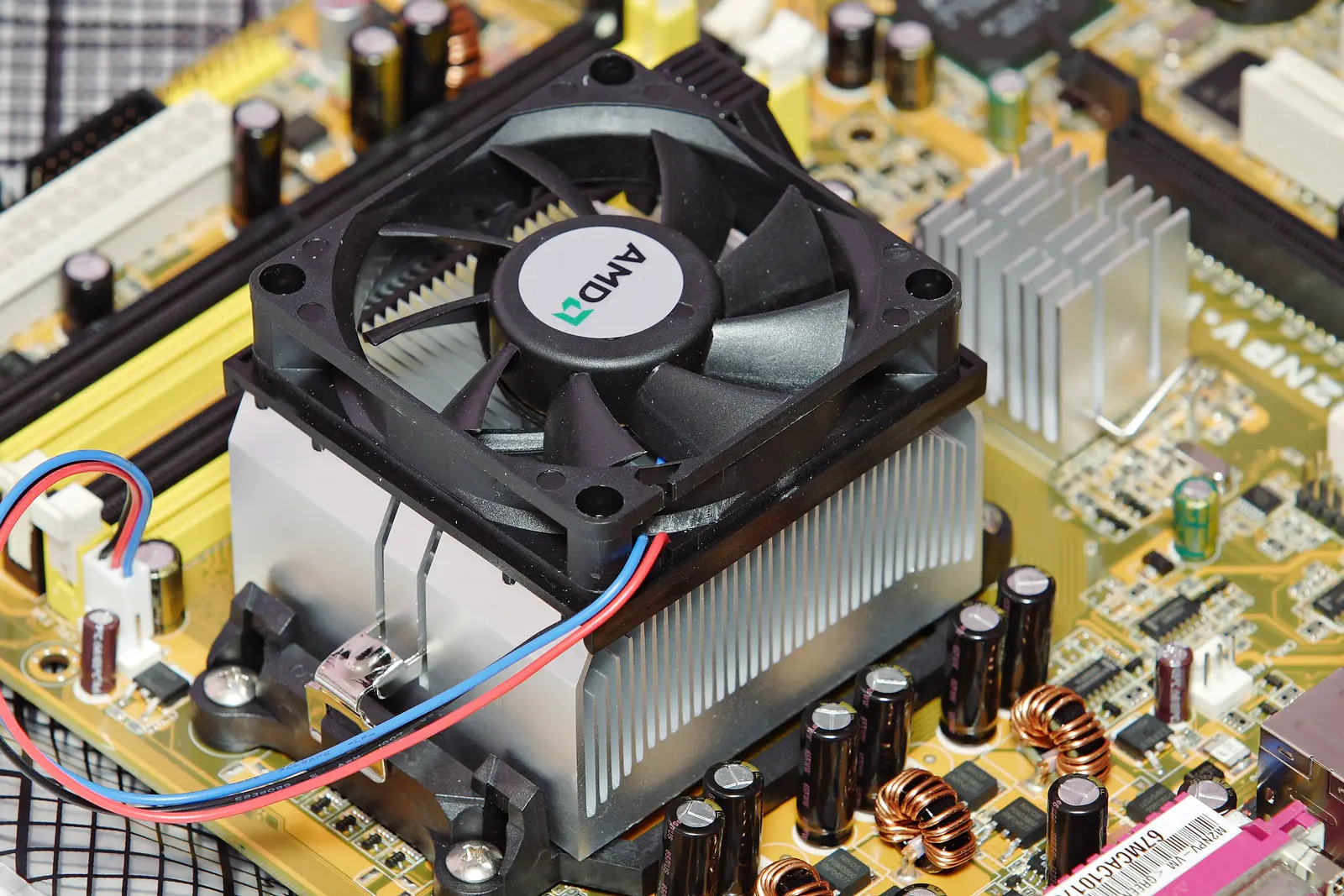

• Computer motherboard cooling

• Relay and solid-state component cooling

• Power transistor heat dissipation

• Printed Circuit Board (PCB) cooling

• Laptop internal and external cooling

• Amplifier heat management

Which Criterion Do You Use To Choose The Right Heat Sinks?

When selecting a custom heat sink, consider the following factors:

• Thermal Design Profile: Evaluate the power draw and heat generation of the component to match the heat sink's capacity.

• Target Temperatures: Determine the desired operating temperature to select the appropriate heat sink performance level.

• Space Availability: Ensure the heat sink fits within the available installation space.

• Heat Sink Design: Choose a design that optimizes performance and compatibility with your application.

• Heat Sink Type: Select between active or passive heat sinks based on the heat dissipation requirements.

• Budget: Balance performance and cost to select the most cost-effective solution.

What Are The Typical Applications Of Custom Heat Sinks?

Custom heat sinks are commonly used in:

• AC/DC converter cooling

• Integrated Circuit (IC) cooling

• LED lighting thermal management

What Is The Process Of Fitting A Heat Sink Onto A Device?

While mounting mechanisms may vary by heat sink type, most installations follow similar steps:

1. Secure the heat sink baseplate tightly to the component surface using screw-down assembly or manual clamping.

2. Use mounting accessories such as spring mount rivets, spring clips, adhesive tapes, or screws for secure installation.

3. Apply thermal paste or grease between the heat sink and component to enhance thermal transfer efficiency.

What Is The Significance Of Using Heat Sinks On Power Amplifiers?

Power amplifiers generate significant heat from their transistors, which can cause distortion and damage to sensitive components. Heat sinks help control and dissipate this heat, protecting electronics and extending the amplifier's service life.

How Does A Heat Sink Work?

Custom heat sinks operate through a four-step heat transfer process:

1. Heat Generation: The device generates heat during operation, which needs to be dissipated to maintain performance.

2. Heat Transfer: Heat moves from the source to the heat sink through natural conduction, facilitated by high-conductivity materials like copper or aluminum.

3. Heat Distribution: Heat spreads uniformly throughout the heat sink, moving from hot areas to cooler areas through conduction.

4. Heat Dissipation: The heat sink transfers heat to the surrounding environment, cooling the component in the process.

What Does The Future Hold For Custom Heat Sink Materials?

The future of custom heat sink materials will focus on developing lighter-weight materials with improved thermal conductivity, as well as hybrid materials that combine the benefits of different substrates to enhance performance.

How Does A Custom Heat Sink Compare To Fans?

• Fans: Use forced convection to blow cool air over heat-generating components, requiring a power source to operate.

• Custom Heat Sinks: Use conduction to transfer heat away from components, operating without external power and providing passive cooling.

What Are The General Rules To Follow When Using Heat Sinks?

• Apply thermal grease between the heat sink and component to improve thermal transfer

• Mount fins vertically to optimize natural cooling

• Avoid overcrowding heat-generating devices to maintain airflow

• Ensure unobstructed airflow around the heat sink for maximum dissipation

• Use active heat sinks with fans for high-heat applications

As a trusted heat sink manufacturer in China, Alugreat offers a comprehensive range of custom heat sink solutions, including aluminum heat sink enclosures, LED heat sinks, skived fin heat sinks, pin fin heat sinks, round heat sinks, and cylindrical heat sinks. Contact us today to discuss your custom heat sink requirements and receive a tailored thermal management solution.
