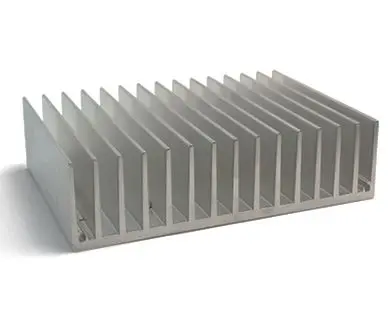

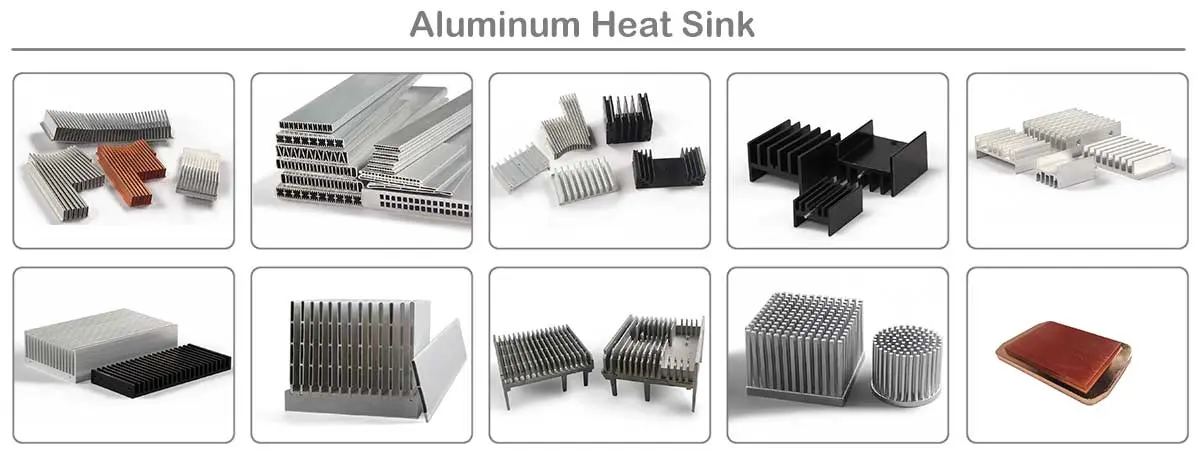

Aluminum Heat Sink

Aluminum heat sink finish can be fashionable, stylish and excellent flashy effect. We can design and develop aluminium heat sink to suit any of your unique specifications.

Frequently Asked Questions

Alugreat is a premier professional aluminum heat sink manufacturer and supplier with over 20 years of industry experience in China. We deliver high-quality, customizable aluminum heat sinks designed to enhance the lifespan and performance of electronic devices and components, with a commitment to quality control, innovative production systems, and global partnership expansion.

Brand Overview & Expertise

With decades of manufacturing expertise, Alugreat has established itself as a reliable aluminum heat sink supplier, continuously upgrading our production, manufacturing, and delivery systems to keep pace with market trends. We maintain a comprehensive range of aluminum heat sinks to serve customers worldwide, and we meticulously inspect every product to ensure consistent quality and performance.

Our mission is to become a trusted business partner that meets all customer demands while delivering innovative heat sink solutions. With Alugreat aluminum heat sinks, you can ensure your electronic devices and related components enjoy an extended lifespan, thanks to our high-performance thermal management solutions.

Aluminum Heat Sink: The Ultimate FAQ Guide

This comprehensive guide covers all essential information about aluminum heat sinks, helping you make informed purchasing decisions before investing in your next heat sink solution.

What Is An Aluminum Heat Sink?

Aluminum heat sinks are specialized thermal management devices installed on machines to dissipate heat away from overheating components. These aluminum metal devices efficiently transfer heat from electronic equipment to the surrounding air, preventing overheating and damage.

Which Properties Make Aluminum Heat Sink More Popular?

Aluminum is the second most widely used metal globally, and it possesses unique properties that make it ideal for heat sink manufacturing:

• Excellent Thermal & Electrical Conductivity: Aluminum conducts heat and electricity at high speeds, effectively eliminating excess heat buildup from devices.

• Low Density: With a density of 2,700 kg/m³, aluminum reduces the overall weight of heat sinks, minimizing the load on electronic devices.

• High Strength: Aluminum maintains its structural integrity even in high-temperature applications, ensuring reliable performance.

• Easy Machinability: Aluminum can be easily machined into various sizes, shapes, and designs to meet custom requirements.

• Corrosion Resistance: Aluminum heat sinks resist corrosion, extending their service life and reducing the risk of failure.

• Non-Magnetic Features: Aluminum is non-magnetic, preventing electromagnetic interference with electronic devices.

• Recyclability: Aluminum heat sinks are fully recyclable, supporting sustainable manufacturing practices.

What Is The Thermal Conductivity Of Aluminum Heat Sink?

Aluminum is a top choice for heat sink manufacturing due to its excellent heat-conducting capabilities. Here are the thermal conductivity ratings of common aluminum heat sink alloys:

• A6061 Aluminum Heat Sink: Offers a thermal conductivity of 167W/m-K, ideal for machined heat sink applications.

• A6063 Aluminum Heat Sink: Provides a thermal conductivity of 201W/m-K, perfect for extruded heat sink designs.

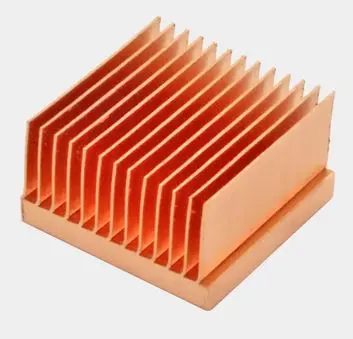

How Does The Copper Heat Sink And Aluminum Heat Sink Compare?

When selecting a heat sink, you may choose between aluminum and copper options. Here’s a detailed comparison:

• Weight: Aluminum has half the weight of copper (2712 kg/m³ vs. 8940 kg/m³), making aluminum heat sinks lighter and easier to install.

• Cost: Aluminum heat sinks are more cost-effective, with aluminum priced at $$2,463 per metric ton compared to copper at$$6,939 per metric ton.

• Thermal Conductivity: Copper heat sinks have higher thermal conductivity (231 BTU/(hr·ft⋅°F)) than aluminum heat sinks (136 BTU/(hr·ft⋅°F)).

Choose copper heat sinks for maximum heat conductivity, or opt for aluminum heat sinks for a balance of performance, weight, and cost.

Which Aluminum Alloys Do You Use in Manufacturing Aluminum Heat Sink?

We offer aluminum heat sinks made from various high-performance alloys, including:

• 6000 Series Alloys: 6061 (166 W/mk thermal conductivity) and 6063 (201 W/mk thermal conductivity) are the most popular choices for their excellent thermal performance.

• 1050 Aluminum: Provides a thermal conductivity of 229 W/mk, suitable for specialized applications.

Which Factors Affect The Performance Of Aluminum Heat Sink?

Several key factors influence the performance of aluminum heat sinks:

• Material Type: Choose 6000-series aluminum alloys (6061 or 6063) for optimal performance.

• Protrusion Design: The fin design and extension beyond the base affect heat dissipation efficiency.

• Air Velocity: Higher airflow through fins improves heat removal from the heat sink.

• Surface Treatment: Surface finishes can enhance or hinder heat transfer; bright finishes reflect heat, while dull finishes absorb heat.

How Do You Choose The Right Aluminum Heat Sink For Your Project?

To select the ideal aluminum heat sink, consider:

• Thermal conductivity ratings of different alloys

• Maximum surface area to maximize airflow

• Custom design options to meet your specific application requirements

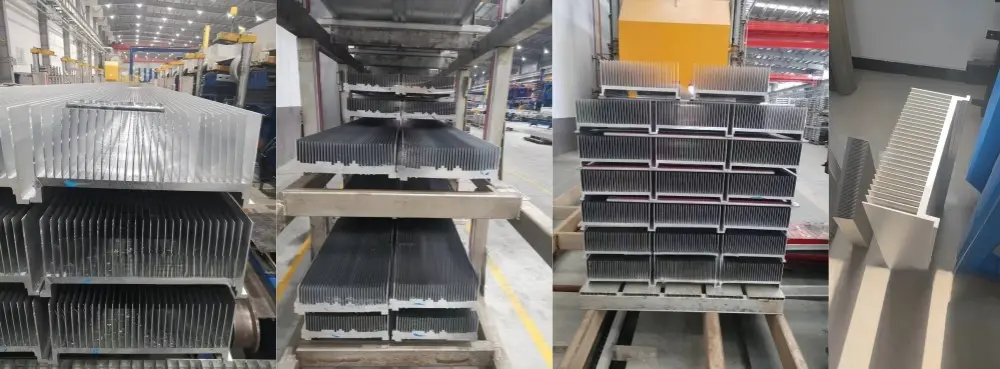

What Is The Process Of Manufacturing The Aluminum Heat Sink?

The most common manufacturing method for aluminum heat sinks is extrusion, using aluminum alloy 6063-T5. Here’s the step-by-step process:

1. Material Preparation: Heat the extrusion die to 450-500°C and heat the aluminum billet to the same temperature to ensure malleability. Apply a release agent and load the billet into the extrusion press.

2. Extrusion Process: Use a hydraulic press exerting 15,000 tons of pressure to push the aluminum billet through the die, forming the desired heat sink shape. Quench the extruded product with a water bath or fans, then shear it to length and cool to room temperature.

3. Secondary Machining: Modify the heat sink with punching, drilling, or surface finishing to meet custom specifications. Finally, inspect and test the product before packaging and distribution.

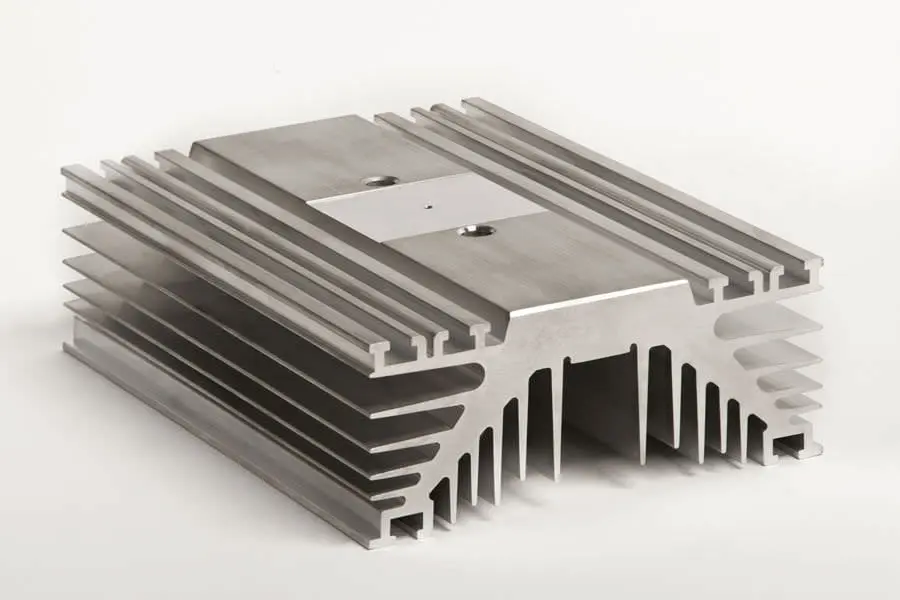

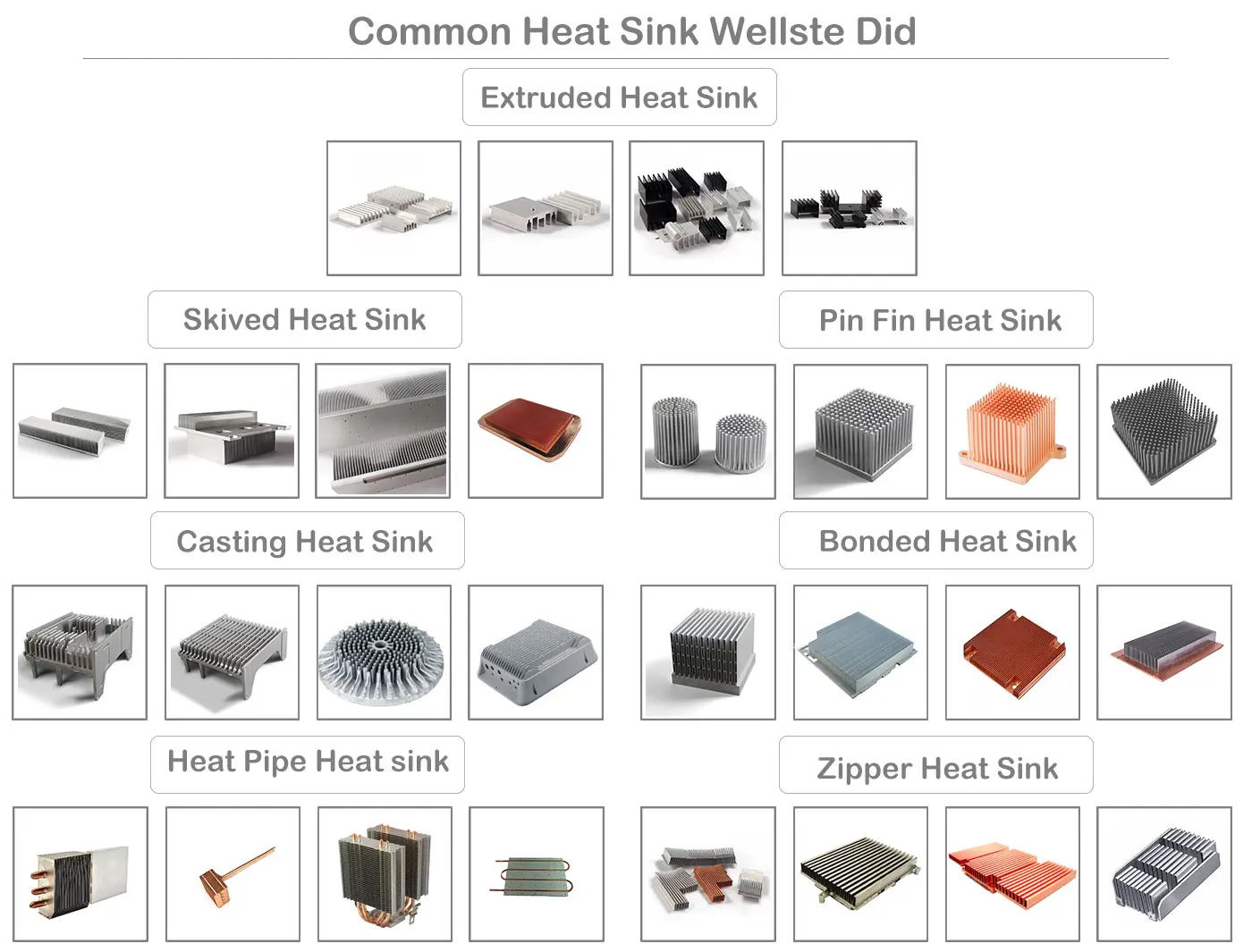

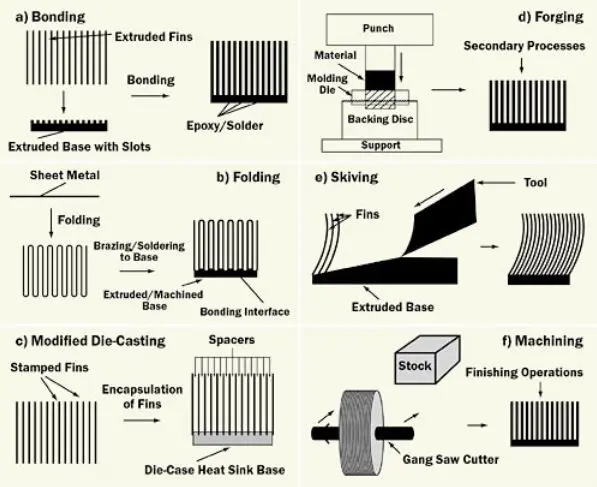

How Does Extruded Aluminum Heat Sink Compare To The Bonded Aluminum Heat sink?

• Extruded Aluminum Heat Sink: Manufactured via extrusion, these heat sinks are cost-effective, customizable, and offer performance ranging from low to high levels. However, they have limitations on maximum extrusion width.

• Bonded Aluminum Heat Sink: Ideal for large-sized heat sinks, bonded heat sinks allow material diversification between the base and fins (e.g., combining aluminum and copper for enhanced performance). They offer moderate performance but come with higher costs.

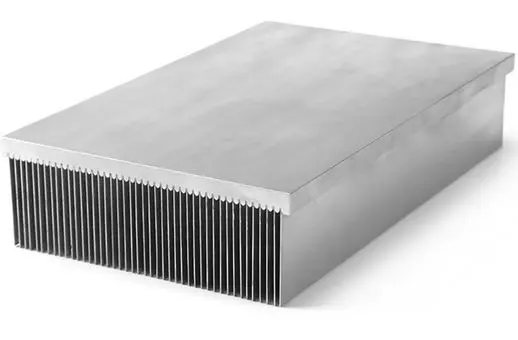

What Is The Difference Between Stamped And Skived Heat Sink?

• Stamped Aluminum Heat Sink: Made by stamping metal fins and soldering them to a base, these heat sinks are low-cost, automated, and suitable for low-power applications, but offer low performance.

• Skived Heat Sink: Produced from a solid metal block (typically copper), skived heat sinks have high fin density and surface area, delivering excellent heat dissipation. However, they are heavier and have directional sensitivity.

How Do The CNC Machined And Forged Aluminum Heat Sink Compare?

• CNC Machined Aluminum Heat Sink: Offer high thermal conductivity and complex design flexibility, but are expensive and have long production times, making them unsuitable for high-volume orders.

• Forged Aluminum Heat Sink: Manufactured via compression, these heat sinks are cost-effective for high-volume production and offer medium performance, but have limited design capabilities.

How Much Do The Aluminum Heat Sink Cost?

The cost of aluminum heat sinks varies based on:

• Heat Sink Type: CNC machined heat sinks are more expensive than forged heat sinks.

• Size & Dimensions: Larger heat sinks with more complex designs cost more.

• Order Quantity: Bulk orders may qualify for volume discounts.

Do You Customize The Aluminum Heat Sinks According To Customers Specifications?

Yes, we offer fully customized aluminum heat sinks tailored to your specific requirements. Our design team can assist you in developing the optimal heat sink design to meet your performance and application needs, delivering functional, high-quality solutions at competitive prices.

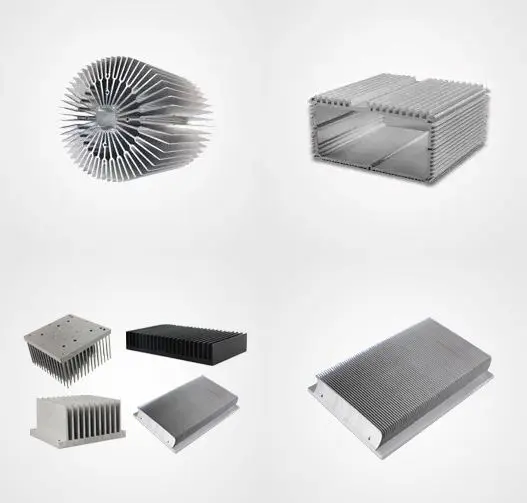

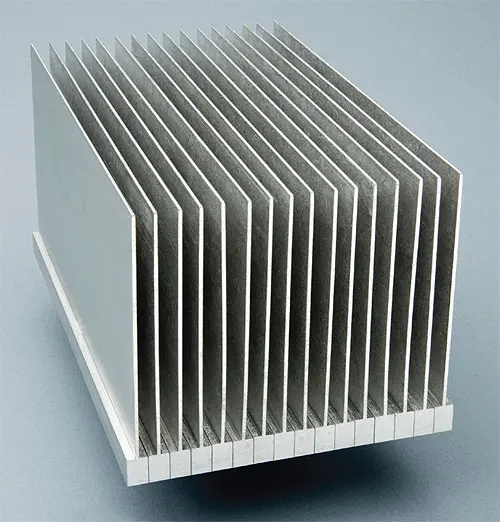

Which Shapes Of Aluminum Extruded Heat Sink Are Available?

Aluminum extruded heat sinks are available in a wide range of shapes, from simple flatback fins to complex geometries for advanced cooling. They support both active and passive cooling, and can include special grooves and patterns for push or clip pin attachment systems. We offer various lengths to suit different application requirements.

How Do You Optimize Thermal Performance Of The Aluminum Heat Sink?

To enhance thermal performance:

• Choose high-performance aluminum alloys (6000 series) with excellent thermal conductivity.

• Optimize the extrusion process to ensure optimal heat dissipation specifications.

• Design thin fins to increase fin density and surface area.

• Maintain an 8:1 aspect ratio for extruded heat sinks to maximize heat transfer efficiency.

What Are The Benefits Of Choosing The Aluminum Heat Sink?

• Standard Dimensions: Support mass production for consistent, scalable solutions.

• Lightweight: Reduce the overall weight of electronic devices.

• Solderability: Easy to attach to overheating components via soldering.

• Customizable: Can be machined into various shapes and designs to meet unique needs.

What Are The Disadvantages Of Using The Aluminum Heat Sink?

• Tooling Costs: Manufacturing custom aluminum heat sinks requires initial tooling investment.

• Cooling Limitations: Some 1000-series aluminum alloy heat sinks may require additional DC fans to enhance cooling performance.

How Do The Aluminum Heat Sink Compare To Fans?

• Aluminum Heat Sink: Absorbs heat from devices and dissipates it to the surrounding air, relying on conduction and surface area for performance.

• Cooling Fans: Increase airflow over components to remove heat, but are less effective at heat transfer compared to heat sinks.

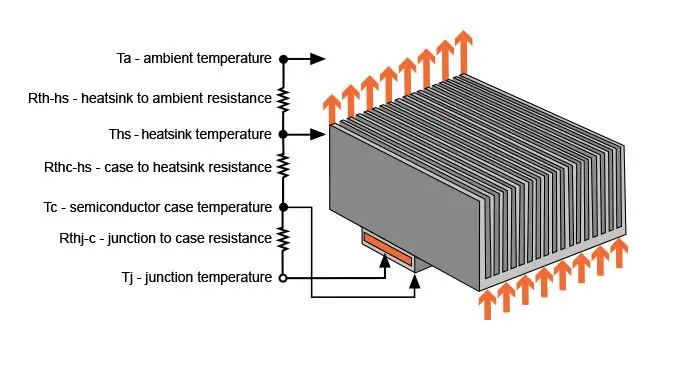

What Is The Working Principle Of The Aluminum Heat Sink?

Aluminum heat sinks rely on conduction to transfer heat from overheating devices to the air. With a thermal conductivity of 235 W/mK, aluminum absorbs heat from the device, transfers it through molecular conduction to the fins, and dissipates it into the surrounding environment. More fins and larger surface area improve heat dissipation efficiency.

What Does The Future Hold For Aluminum Heat Sink?

Aluminum heat sinks are continuously evolving, with future advancements expected to include lighter, more conductive designs, and innovative bonding between aluminum and other metals to enhance thermal performance.

What Is The Installation Process Of An Aluminum Heat sink?

Install aluminum heat sinks using thermal interface materials (greasy, conductive materials like copper-based compounds) placed between the heat sink and the overheating device. Solder the heat sink to the component for secure attachment.

Can You Install An Aluminum Heat Sink Alongside A Fan?

Yes, aluminum heat sinks can be used in conjunction with cooling fans. The heat sink conducts heat to the fins, while the fan increases airflow over the fins to accelerate heat dissipation, improving overall cooling performance.

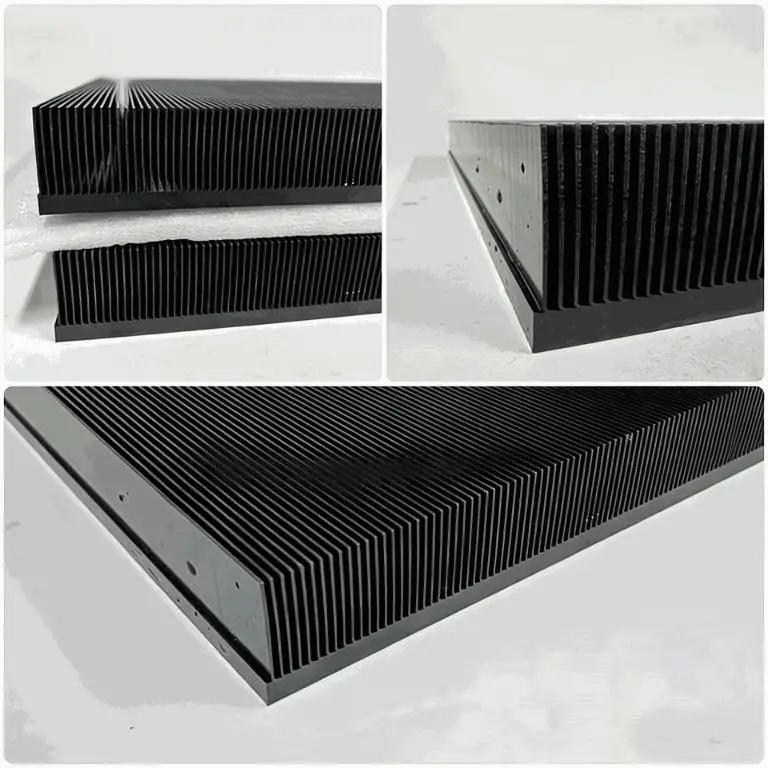

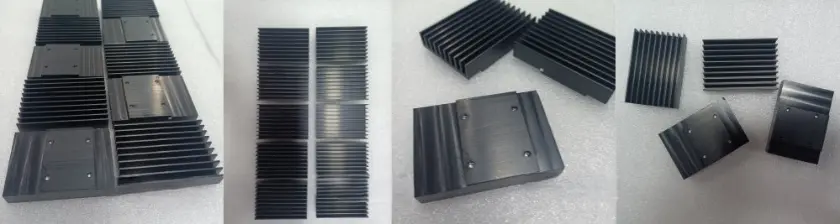

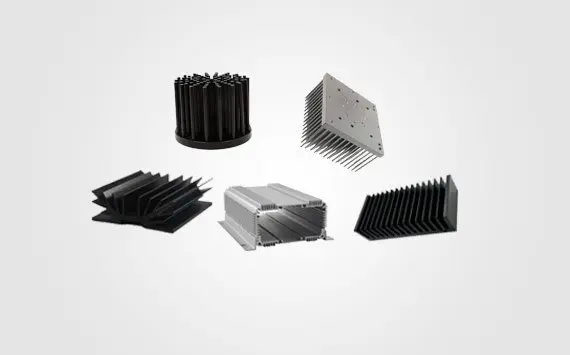

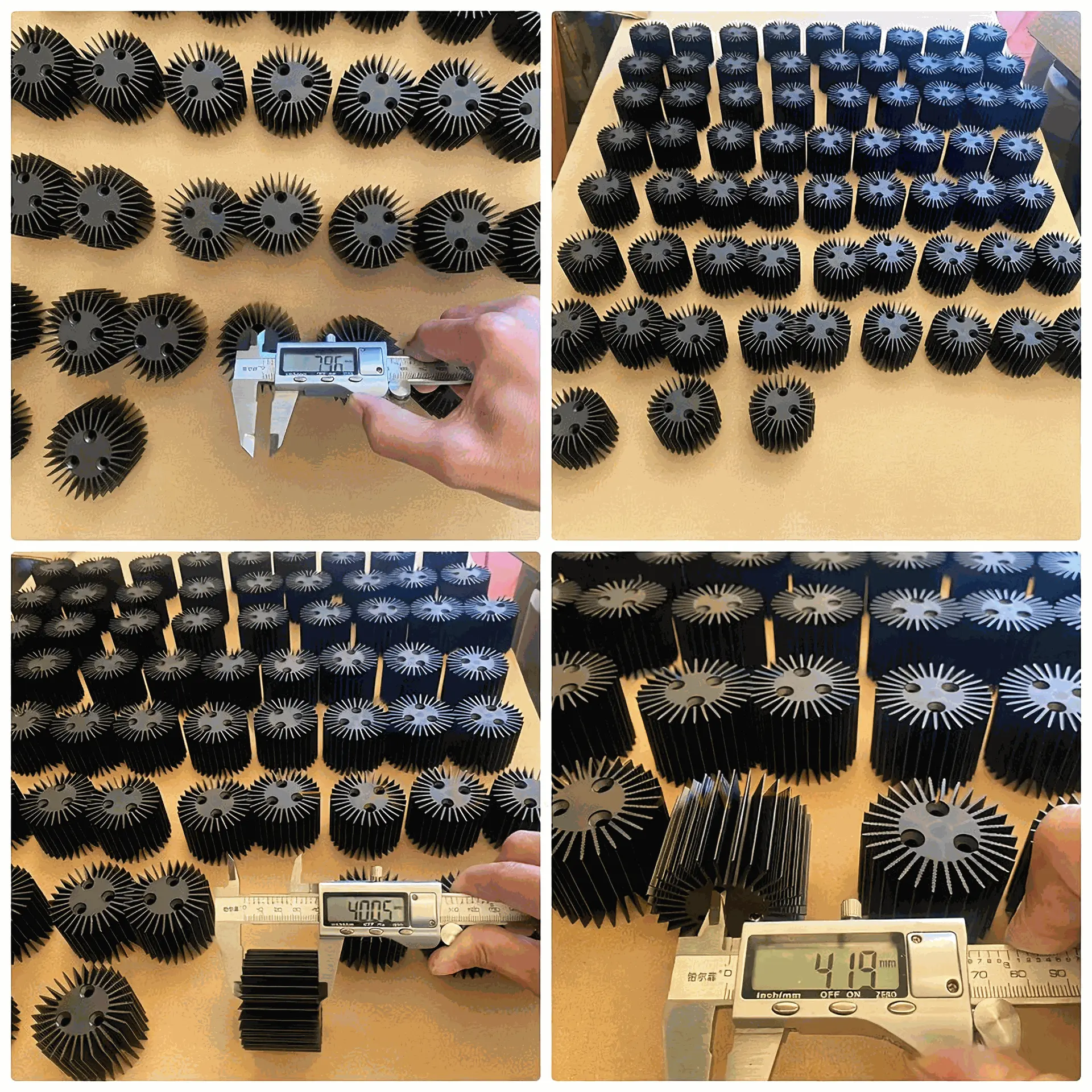

What Is The Significance Of Having Dark Colored Aluminum Heat Sink?

Dark-colored (especially black) aluminum heat sinks enhance cooling performance by absorbing more heat from overheating devices, which is then dissipated into the environment, boosting the overall thermal management process.

For all your custom aluminum heat sink needs, contact Alugreat today to discuss your requirements and receive a high-quality thermal management solution.
